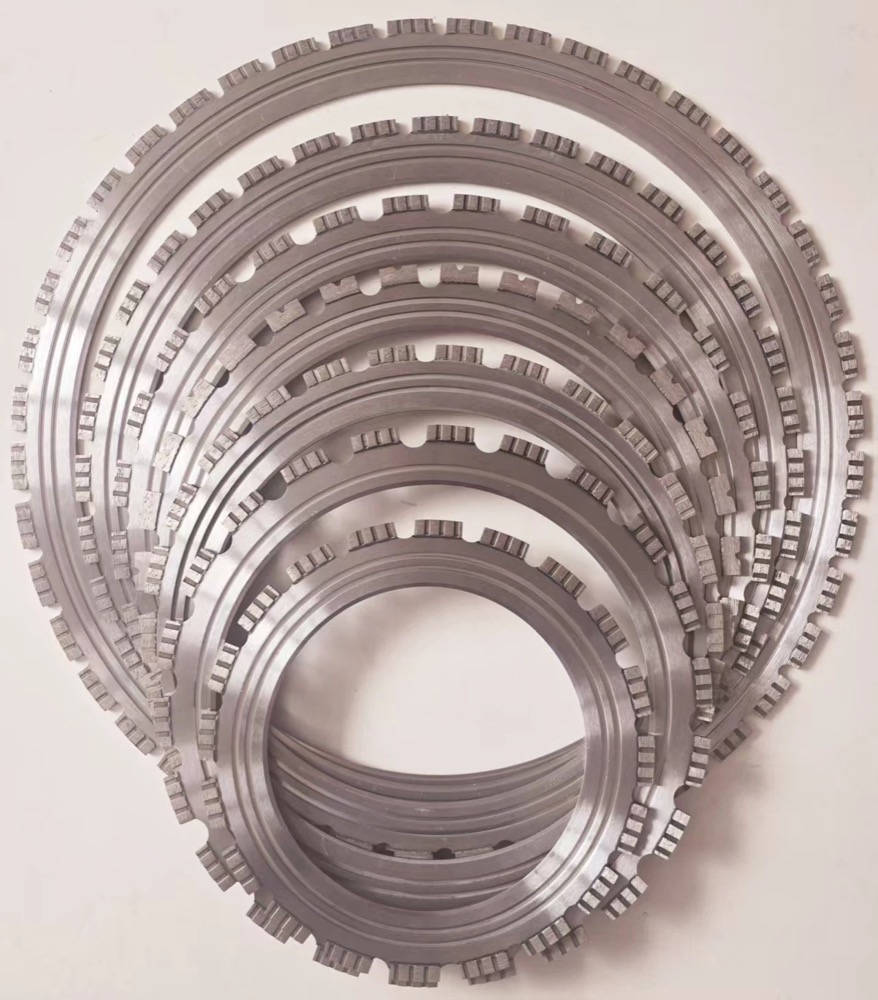

Wall saw blades run from 600 mm to 1600 mm diameter. Pick the smallest blade that still gives you 10-15 mm extra depth beyond the wall thickness. Maximum cutting depth is roughly half the blade diameter. Larger blades cut deeper but demand more horsepower and feed speed.
| Blade diameter | Max cut depth | Typical use |
|---|---|---|
| 600 mm | ~250 mm | Thin walls, interior openings |
| 800 mm | ~360 mm | 200-300 mm walls |
| 1000 mm | ~480 mm | 300-450 mm walls |
| 1200 mm | ~600 mm | 450-550 mm walls |
| 1500 mm | ~750 mm | Thick retaining walls |
| 1600 mm | ~800 mm | Maximum wall saw depth |
Our diamond saw blades category covers the full 800-1600 mm wall saw range with laser-welded segments.
Wall saw blades are almost always laser welded, with segments 10-15 mm high. The core must be thin to minimise cutting drag but stiff enough not to deflect. Silent-core (sandwich) blades reduce noise on interior work.
A: No. Wall saw blades are reinforced for vertical rotation and have different hole patterns. Use the correct wall saw blade.
Beyond 800-900 mm, diamond wire sawing becomes faster and cheaper than any wall saw blade.
Typically 400-700 RPM. Always follow the figure printed on the blade core.
Size the wall saw blade to the wall thickness, plus 10-15 mm. Confirm your saw can drive it, and choose a soft bond for heavy rebar. contact JOY TECH for wall saw blades in 800-1600 mm with custom segment heights. laser-welded concrete and asphalt saw blades
